Belt Conveyors

Belt Conveyors are supplied in two versions:

  • SLIDING BELT CONVEYOR (standard version)
    MAIN USES: They convey light to medium materials, paper, plastic, cardboard and light packaging resulting from sorting and multi-material collection.
  • ROLLER CONVEYOR (heavy version)
    MAIN USE: They convey medium heavy materials, paper, RSU, composting material or industrial waste.

Standard version features:

  • Sorting conveyors
  • Up to 35 meters long, medium-low capacity
  • Modular construction in 3 mm thick press sheet metal
  • Rubber belts sliding on metal sheet, slightly concave at the sides
  • Oil-resistant rubber belt with lower cover suitable for sliding on sheet
  • Wear-proof rubber sealing
  • Drive drum scraper in wear-proof plastic

Possibility of variation of inclination, for example from inclined to horizontal.

Belt conveyorsBelt conveyorsBelt conveyorsBelt conveyors


Heavy version features:

  • Up to 60 meters in length, medium-high capacity
  • Speeds up to 3 meters/second
  • Sturdy modular construction in metal bars. Very rigid, self-supporting, allows distance increase between supporting feet, by reducing their number, and therefore occupying much less ground space
  • Sliding of rubber belt on flat rollers inclined at the sides
  • Oil-resistant rubber belt bottom cover suitable to slide on rollers
  • Wear-proof rubber sealing
  • High efficiency scrapers on drive drum
Technical Data

Belt Conveyors

800

1000

1200

1400

1600

1800

2000

Width A [mm]

650

850

1050

1250

1450

1650

1850

Size B [mm] (without motor)

1300

1500

1700

1900

2100

2300

2500

Side height H [mm]

From 250 mm to 600 mm

Details

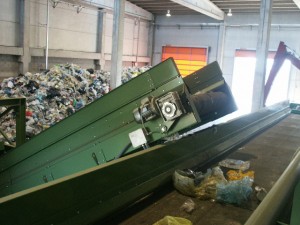

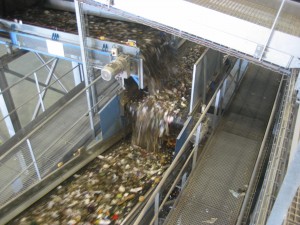

Operating particular of Belt conveyors  Lower roller protection  Detail insertion of iron separators

 Operating particular Lower roller protection in detail                               Detail insertion of iron separators

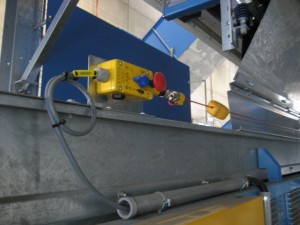

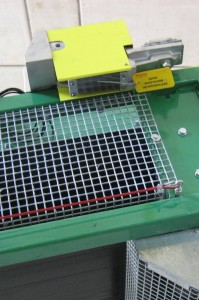

Tungsten scraper in steel in detail  Inclusion of weighing system in detail   Safety switch wire in detail

 Tungsten scraper in steel in detail Inclusion of weighing system in detail Safety switch wire in detail

Modular construction allows transport cost containment and shorten delivery times.

Belt Conveyors transport
